Ex-display Atlas AWA-3DT 3D Wheel Aligner

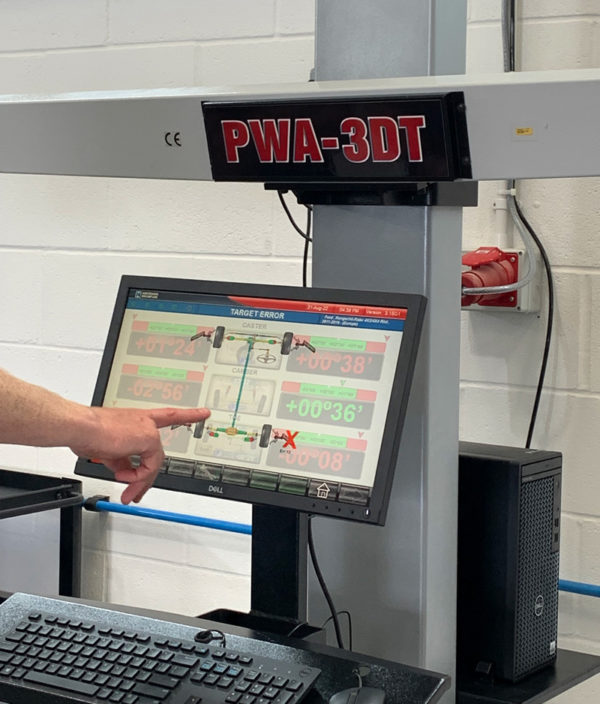

The Atlas AWA-3DT uses latest generation digital imaging technology for data acquisition. It uses high resolution scientific imaging cameras combined with unique Align+ software and works on Windows OS.

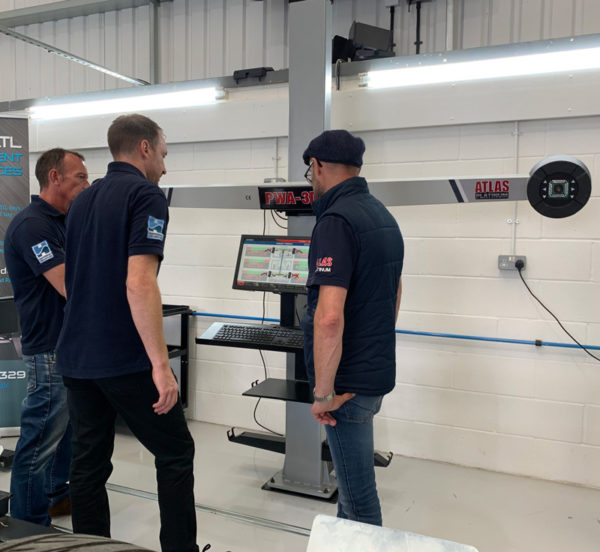

The camera beam can be mounted manually at any height to suit alignment pit or lift application, or the on the wall, ideal for space constrained workshops. The unit is ideal for drive through service bays handling vehicles with minimum ground clearance.

Key Features

• Vision based 3D imaging technology using 2 CMOS camera
• Simultaneous front and rear wheel alignment (4×4)
• Push Pull Runout compensation
• Setback / thrust angle compensation
• Unlimited memory for vehicle specifications
• Option for selection of vehicle specification during alignment
• Animated pictorial display of angles during alignment
• Two colour bar display for adjustment of all angles
• Automatic tracking of left and right turns for caster/kingpin measurements
• Adjustment of camber in wheel jacked-up position and toe curve
• Quick wheel alignment program by user defined
• Rear setback and track width difference
• Data manager software for storing alignment results
• Customer address in printout and customer data edit option provided before taking printout

Please note that if using a 4 post lift, a minimum of 2872mm is required between the columns.

Finance details:

*Weekly price reflects 3-year finance option. The total value of the purchase must be over £1,000 (ex.VAT) to qualify for finance. Call today on 01527 883 580 to begin your application.

General Info

Atlas Equipment Warranty

The price of the Atlas AWA-3DT includes delivery and installation by one of our expert engineers. We are therefore pleased to offer our customers a 24 month parts and labour warranty. This comes as standard and no action is required.
